輪輻式傳感器

合金鋼/不銹鋼材料

拉壓雙向，量程可定制

主要應用于汽車壓裝、自動化組裝、3C產品測試、新能源產品組裝、醫療檢測、機器人領域，模具組裝等工業測控系統，也適用于試驗機，汽車衡，料斗秤，各種工業稱重系統等

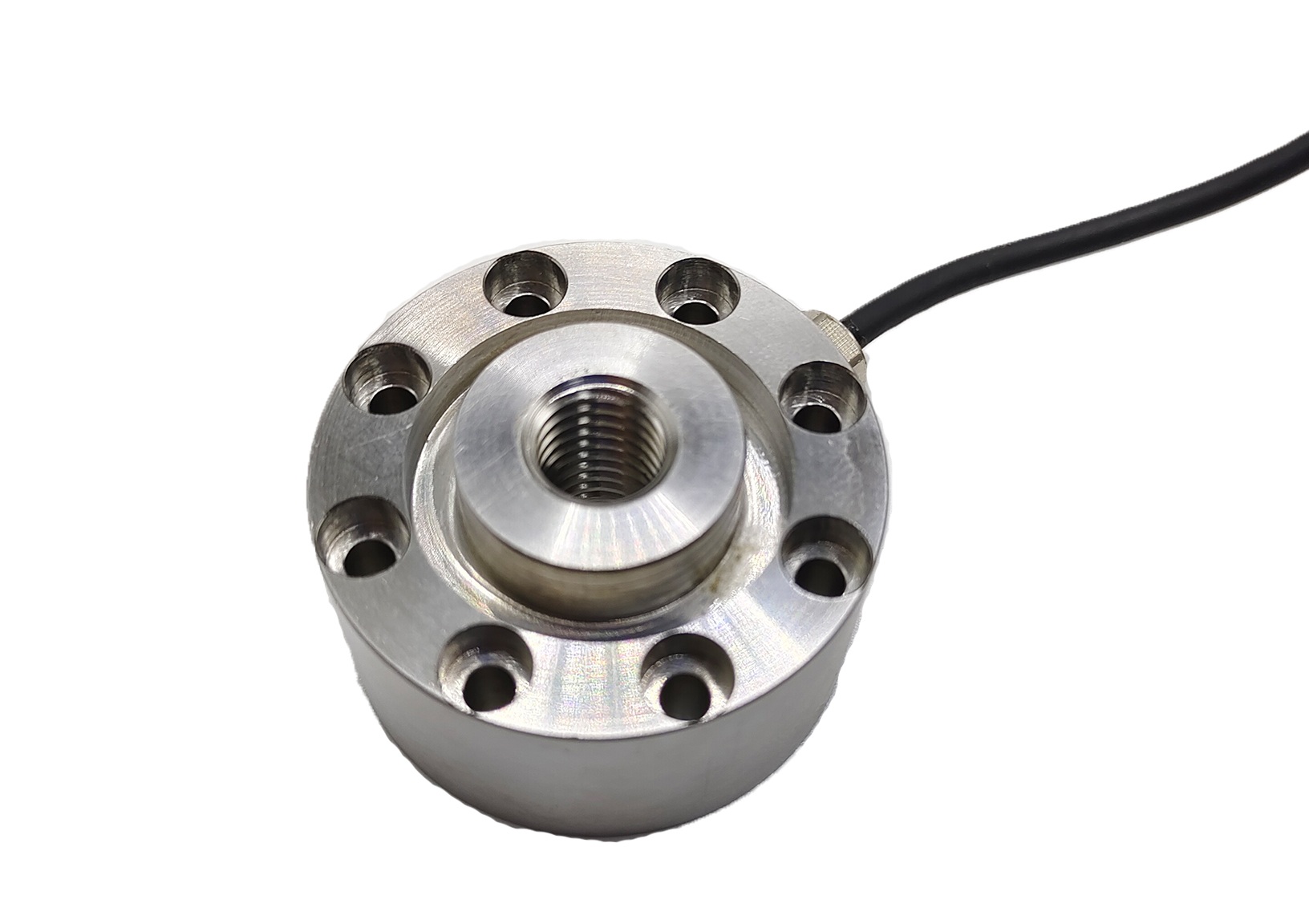

Pancake type load cell

Alloy steel / stainless steel

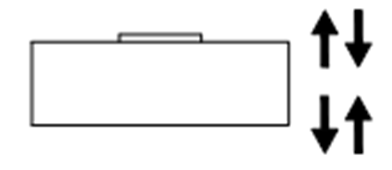

Tension and compression application， capacity is able to be customized

Mainly used for automotive press fit, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing and control system； this also is applicable to testing machine, truck scale, hopper scale, a variety of industrial weighing systems

High dynamic response frequency

參數	Specifications	技術指標/Technique
額定容量	Capacity	0.1,0.2,1,2T
輸出靈敏度	Rated output	2.0±1%mV/V(0.1,0.2t) 3.0±1%mV/V(1~30t)
零點輸出	Zero balance	±1% F.S.
非線性	Non-linearity	0.1%F.S.
滯后	Hysteresis	0.1%F.S.
重復性	Repeatability	0.1%F.S.
蠕變（30min）	Creep(30min)	0.03%F.S.
溫度靈敏度漂移	Temp.effect on output	0.02%F.S./10℃
零點溫度漂移	Temp.effect on zero	0.02%F.S./10℃
輸入電阻	Input impedance	780±10Ω
輸出電阻	Output impedance	700±5Ω
絕緣電阻	Insulation	≥5000MΩ/100VDC
激勵電壓	Recommended excitation	5~15V
最大激勵電壓	Maximum excitation	20V
溫度補償范圍	Compensated temp range	-10~40℃
工作溫度范圍	Operation temp range	-10~70℃
安全超載	Safe overload	150%F.S.
極限超載	Ultimate overload	200%F.S.
電纜線尺寸	Cable size	φ5×3000mm
防護等級	IP Class	IP67
