您的位置:首 頁 > 產品展示 > 產品展示 > ST-55

ST-55

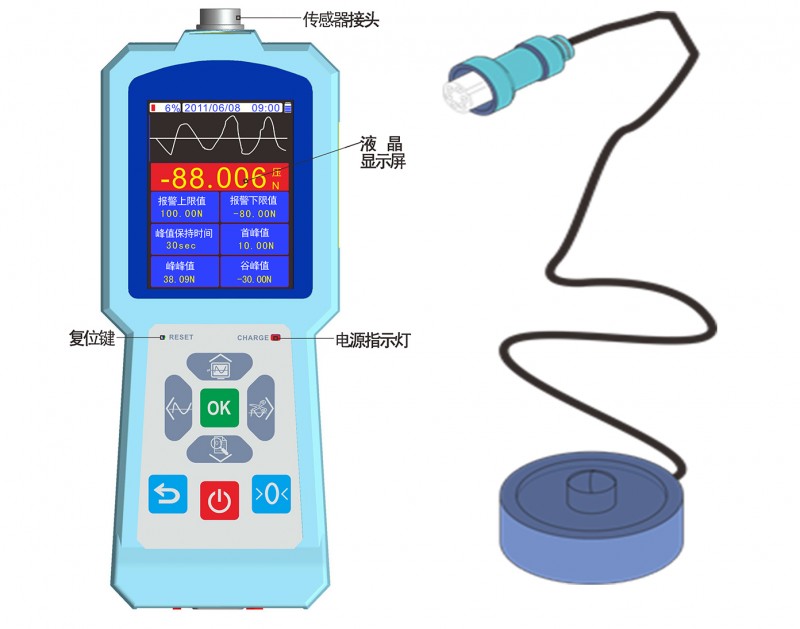

產品圖片
PRODUCT IMAGE

產品圖片

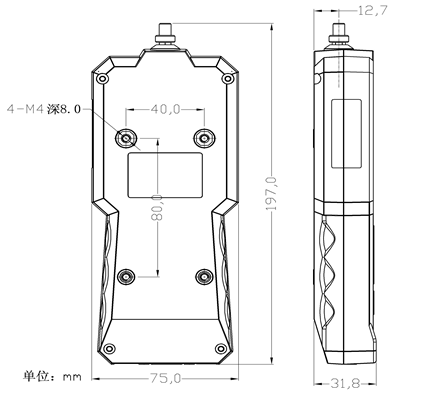

安裝尺寸
MOUTING DIMENSION

安裝尺寸

特點與用途
FEATURES & APPLICATIONS

USB數據接口,支持熱插拔;

顯示峰值力、實時值,ST-55圖顯示測力計還可顯示測試線,可監控和追朔測試全過程;

上下限偏差值自由設定、限內限外報警任意選擇;

上下限兩點電平輸出、蜂鳴器、顯示屏同時提示報警;

屏幕顯示方向可180°翻轉;

三種單位N、kg、lb自動換算,;

具有峰值保持功能、峰值自動解除及解除時間自由設定;

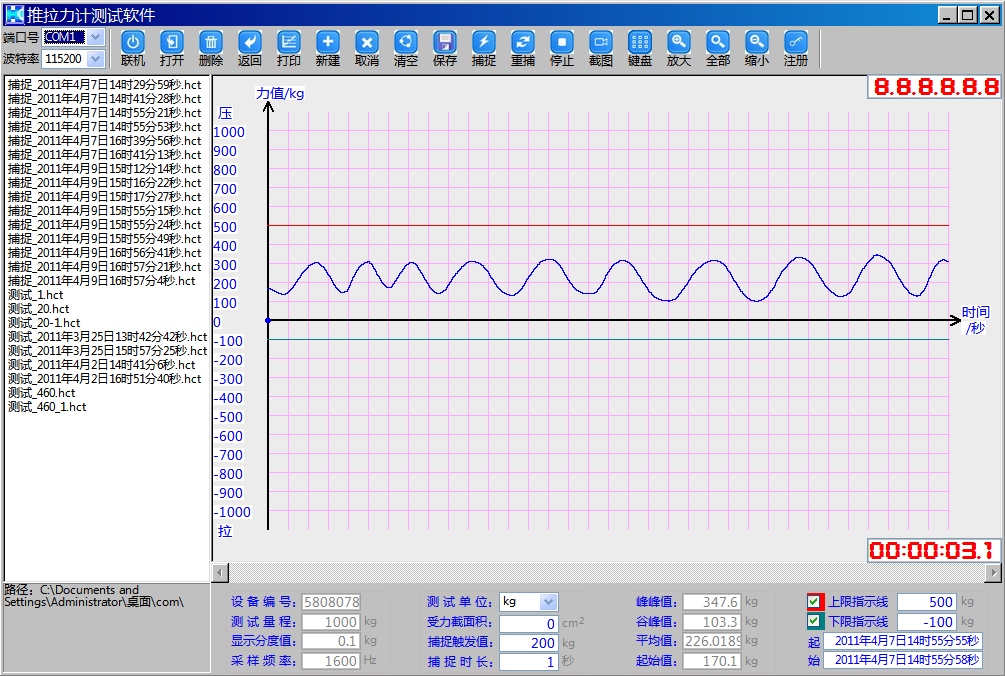

通過PC配套專用的測試軟件,可無限存儲、傳遞、追朔測試曲線數據;

USB connect interface, support hot-swappable

Show peak force, real-time value, ST-55diagram display test line, can monitor and trace the whole process of testing;

Upper and lower limits can be set freely, alarm of limits could be chosen

Upper and lower limit two-point output, buzzer, display also prompts the alarm

Irection buttons and display can be rotated 180°

Enable automatic unit conversion: N, kg, and lb; pressure unit Mpa can be converted as well.

Peaks can be held or cleared; clearing time can be set.

Through the PC supporting the dedicated test software, can be unlimited storage, transmission, tracing test curve data


技術參數
SPECIFICATIONS

參數

Specifications

技術指標/Technique

顯示窗口

Display

2.8TFT真彩色/LCD背光

2.8-inch   TFT true color display

可讀性

Readability

1/90000

輸出線性

Output linear

0.002%

綜合精度

Comprehensive accuracy

優于0.01%

A/D轉換速度

A/D Conversion speed

1000/   times/second

接受靈敏度

Accept sensor

-3.6~+3.6 mV/V

輸入負載

Input load

14350Ω傳感器   cells

輸出規格

Output specification

通訊

滿量程溫度漂移

Temp.effect on output

10ppm /

零點溫度漂移

Temp.effect on zero

10μV /

激勵電壓

Excitation voltage

5VDC

電源供給

Power supply

24±5VDC     充電方式

整機功耗

Power waste

10W

工作溫度范圍

Operation temp range

-2070

單件重量

Weight approx.

0.5kg

材料

Material

塑料外殼   Plastic housing

防護等級

IP Class

IP65


受力方式
LOAD DRIRECTION

受力方式

上一個:ST-44 下一個:ST-70
