電阻應變?yōu)槊舾性图呻娐窐?gòu)成的一體產品;
精度高，性能穩定可靠;
沒有集流環等磨損件，可高速長時間運轉，輸出正反轉扭矩信號;

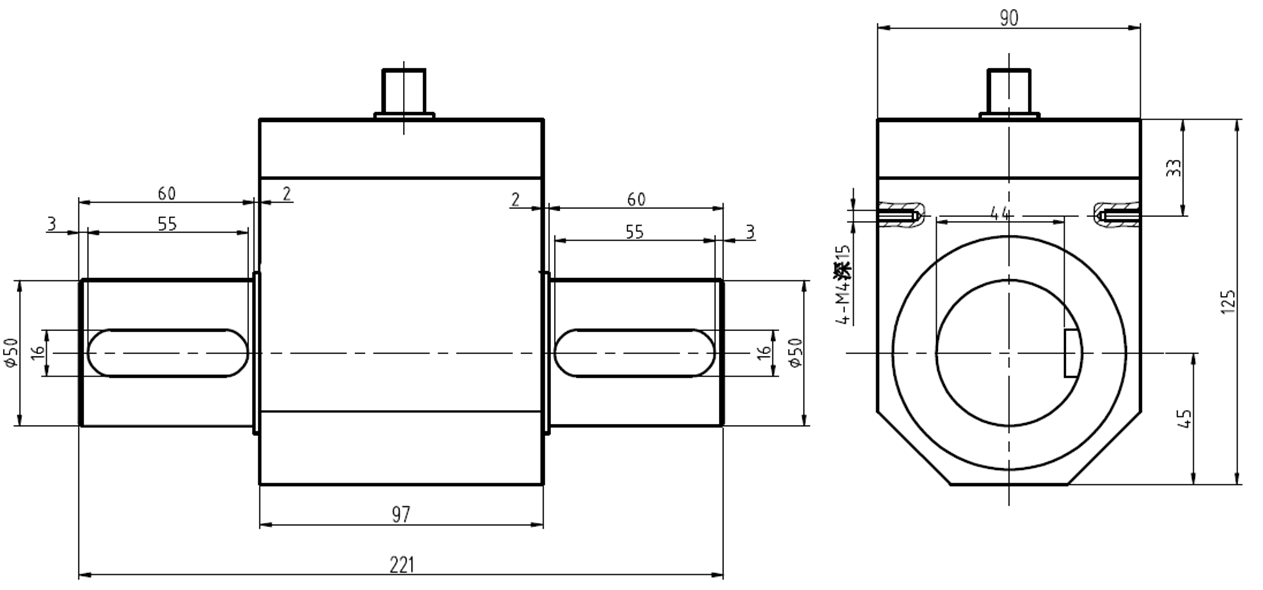

兩端均為鍵連接;
最高轉速不超過4000轉/分鐘
4-20MA 輸出。
Constituted by Strain gauge sensitive components and integrated circuits;
High precision with stable and reliable performance;
This sensor can be operated long-term in high-speed without wear ring and other wear parts, the output is OK for positive and negative torque signal;
Both ends are keyed;
Maximum speed of torque cannot over 4000 r / min.
參數 | Specifications | 技術指標/Technique |
額定容量 | Capacity | 1000，2000N.m |
輸出靈敏度 | Rated output | 1.0~1.5mV/V |
零點輸出 | Zero balance | ±1% F.S. |
非線性 | Non-linearity | 0.2%F.S. |
滯后 | Hysteresis | 0.2%F.S. |
重復性 | Repeatability | 0.1%F.S. |
蠕變（30min） | Creep(30min) | 0.1%F.S. |
溫度靈敏度漂移 | Temp.effect on output | 0.02%F.S./10℃ |
零點溫度漂移 | Temp.effect on zero | 0.02%F.S./10℃ |
輸入電阻 | Input impedance | 350/700±10Ω |
輸出電阻 | Output impedance | 350/700±10Ω |
絕緣電阻 | Insulation | ≥2000MΩ/100VDC |
激勵電壓 | Recommended excitation | 12V |
最大激勵電壓 | Maximum excitation | 15V |
溫度補償范圍 | Compensated temp range | -10~60℃ |
工作溫度范圍 | Operation temp range | -20~60℃ |
安全超載 | Safe overload | 120%F.S. |
極限超載 | Ultimate overload | 150%F.S. |
電纜線尺寸 | Cable size | 3m |
防護等級 | IP Class | IP66 |
